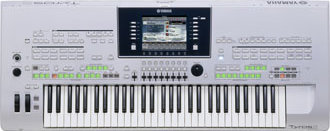

YAMAHA TYROS 3

FSX keyboard

The Tyros3 features the highest quality synthesizer keyboard we’ve ever made: the FSX keyboard. Physically, the keys are of high-precision manufacture and offer greater durability than conventional models. Most importantly, however, the keyboard has enhanced touch response, making it the most expressive and musical keyboard in its class.

TFT LCD Display

Tyros3 is the first Yamaha digital keyboard to feature a high-resolution, 640x480, color TFT (Thin Film Transistor) LCD screen. Big and bright, the 7.5 inch display shows all important settings and parameters with crystal clear clarity, even under extreme lighting conditions. The TFT display has a hugely wide viewing angle which means the content is clearly visible whatever your playing position. The entire display panel is 5-point adjustable; flat for storage or tilted up to enhance visibility during performance.

Super Articulation 2

Mainly for wind instrument Voices, a special Yamaha technology called AEM has been used, which features detailed samples of special expressive techniques used on those specific instruments - to bend or slide into notes, to "join" different notes together, or to add expressive nuances at the end of a note, etc.

Articulation Element Modeling (AEM)

Articulation Element Modeling (AEM) is the technology for simulating this characteristic of instruments. During performance, the most appropriate sound samples are selected in sequence in real time, from huge quantities of sampled data. They are smoothly joined and sounded - as would naturally occur on an actual acoustic instrument.

Intuitive, Quick-Access Sliders

Eight sliders have been provided just below the LCD display let you conveniently and quickly adjust all parameters shown in the display. The additional ASSIGN slider allows you to assign a desired function (volume, reverb, etc.) and control it in real-time during your performance. These nine sliders function as footage levers when the Organ Flutes display is shown.

Two-track Hard Disk Recorder

The Hard Disk Recorder lets you record your performances to two audio tracks - Main and Sub. A Bounce recording feature lets you record even more tracks, allowing you to easily record multiple parts in layers.

Massive 80GB HDD

Staggering amount of MIDI data, style data, wav files and the like can be stored on the keyboard’s internal hard disk. Convenient Multi Pad Sync function / Registrations and OTS Information

You can embellish your performance as you play with several preset phrases by using the Multi Pads. These can even be synchronized with Style/Song playback. The information displays for Registration Memory and One Touch Setting allow you to confirm the registered panel setups easily. Voice Expandability

Download additional Voices from the website and load them to the Tyros3 - and increase your selection of available voices.

High-Speed Communication

The built-in LAN terminal lets you easily connect your instrument directly to the Internet. The USB terminals compatible with USB 2.0 High-Speed enable high-speed communication with USB storage devices and computers.

Features

Size/Weight

• Width 1,140mm
• Height 143mm
• Depth 450m
• Weight 15kg

Control Interface

• Keyboard Number of Keys 61
• Type FSX
• Aftertouch Yes
• Touch Response Yes
• Other Controllers Pitch Bend Yes
• Modulation Yes
• Multi Pads Yes
• Display Full Dot TFT LCD
• Size 640 x 480 dots
• Color Color
• Score Display Function Yes
• Lyrics Display Function Yes
• Wallpaper Customization Main/Lyrics
• Language English, German, French, Spanish, Italian
• Panel Language English

Voices

• Tone Generating Technology AWM Stereo Sampling
• Number of Polyphony (Max.) 128
• Number of Voices 749 + 20 Organ Flute + 480 XG + 256 GM2 + 35 Drum/SFX Kits (+ GS Voices for GS Song playback)
• Featured Voices 11 S.Articulation2! Voices (AEM technology), 53 S.Articulation Voices, 23 MegaVoices, 26 Sweet! Voices, 70 Live! Voices, Live! Drums (12 drum kits), 58 Cool! Voices, 20 Organ Flutes!
• Compatibility XG XF GS GM GM2
• Custom Optional Wave Capacity 4MB (Pre-installed) / MAX 1,024MB (Optional)
• Sampling Custom Voice
• Voice Edit Voice Editor (Normal voice and Durm kit)
• Sound Creator/Voice Set Yes

Effects

• Reverb 42 Preset + 3 User
• Chorus 106 Preset + 3 User
• DSP DSP 1-9 (For Voice/Style/Mic): 272 presets + 10 users
• Master Compressor 5 Preset + 5 User
• Master EQ 5 Bands : 5 Preset + 2 User
• Others Mic effects: Noise Gate x 1, Compressor x 1, 3Band EQ x 1
• Part EQ 2 Bands: 29 Parts (R1, R2, R3, Left, MultiPad, Style x 8, Song x 16)

Functions

• Dual/Layers Voice layer (RIGHT 1-3)
• Metronome Yes
• Split Separete split points for Chord and Voice (LEFT)
• Panel Sustain Yes
• Mono/Poly Yes
• Accompany Style Related Vocal Harmony 60 Preset + 10 User
• Accompaniment Styles
• Preset Number of Preset Styles 450
• Featured Styles 403 Pro Styles, 47 Session Styles with MegaVoices (used by preset styles)
• Fingering Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
• Style Control INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3
• Custom User Styles Yes
• Style Creator Yes
• Other Features Music Finder Yes
• One Touch Setting (OTS) 4 for each style

Songs

• Number of Songs Unlimited (depending on the storage media’s capacity)
• Number of Tracks 16
• Data Capacity approx. 300KB
• Recording Function Quick Recording, Multi Recording, Step Recording, Song Editing
• Compatible Data Format Playback SMF (Format 0 & 1), ESEQ, XF, Style File
• Recording SMF (Format 0)
• Other Features Hard Disk Recording Yes (Play: 2 stereo tracks, Rec: 1 stereo track)

Functions

• Registration Number of Buttons 8 x unlimited banks (depending on the storage media’s capacity)
• Control Bank +/-, Regist Sequence, Freeze
• Lesson/Guide Lesson/Guide Follow Lights, Any Key, Karao-Key, Vocal CueTIME
• Performance Assistant Technology (PAT) Yes
• Demo/Help Demonstration Yes
• Overall Controls Tempo Range 5 - 500, Tap Tempo
• Transpose Yes
• Tuning Yes
• Octave Button Yes
• Scale Type 9 presets
• Direct Access Yes

Storage and Connectivity

• Storage Internal Memory 3.2MB
• Hard Disk Drive 80GB 2.5 inch IDE (Included, Internal)
• External Drives Optional USB Flash Memory, USB Hard Disk Drive, etc. (via USB to DEVICE)
• Optional Memory 168 pin DIMM x 2 (MAX 1024MB)
• Connectivity Headphones x 1
• Microphone Mic./Line in Stereo
• MIDI MIDI A (IN/OUT), MIDI B (IN/OUT)
• AUX IN L/L+R, R(LEVEL FIXED) or LOOP RETURN L/L+R, R
• AUX OUT L/L+R, R(LEVEL FIXED) or LOOP SEND L/L+R, R (Selectable)
• AUX Pedal (optional) Switch or Volume x 3
• LINE OUT MAIN OUT (L/L+R, R), Sub Output 1, 2
• VIDEO OUT RGB Out, NTSC / PAL Composite
• Loop Return Yes
• USB TO DEVICE x 2 (USB 2.0)
• USB TO HOST x 1 (USB 2.0)
• External Speaker To Satellite Speaker (L/R), To Sub Woofer (L/R)
• Speakers Amplifiers Optional Speaker (TRS-MS02)
