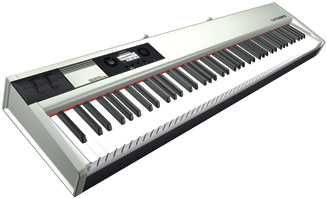

FATAR-STUDIOLOGIC NUMA NANO

All the versions of this article: [Deutsch] [English] [français]


Professional 88-Key Hammer-Action USB Bus powered MIDI Controller

TP/100LR: Professional Digital Piano Keyboard.

Through the development of a new kinematic force-scheme, the research and development of techno-polymer materials, determines a major strength of the key and more precision in its response. The musician therefore obtains a better dynamic control of the action applied on the key and on the hammer (Hyper Dynamic System®). The new PCB design improves the signal contact, increasing the dynamic range and the new connection system is supplied (Fast Connection System®). A special lock-in system (Support Block System®) allows to use the frame of the keybed as a support for mechanical parts, making easier the development of the final instrument.

Easy Control System

Play Mode

Editing is handled by the Easy Control System with a backlit LCD display and touch-sensitive pads. Play Mode gives you direct access to the most important parameters - perfect for quick changes on stage.

Edit Mode

Edit Mode offers more detailed changes to all parameters that can be saved in 65 patches (presets).

YouPlay Mode

What‘s really unique about the NUMA is the so called You- Play Mode, which allows you to create your own velocity curves and save them to 15 presets. These customized curves are available to every patch then.

Due to the integrated USB connection, the NUMA can com- municate with a computer. It offers two modes of operation: With USB MIDI the NUMA is recognized as a „USB-Audio- Device“ by the computer. More interesting is the USB Virtual Com mode, enabling the computer to edit and store presets. Even an update of the NUMA operating system is possible.

Features

- 88 Hammer Action FATAR Keyboard with Grand Piano Feeling Touch
- Touch Sensitive control panel
- 2 assignable jack pedal Inputs
- 1 assignable control wheel
- 1 pitch control wheel
- 16 independent MIDI channels assignable to all controllers
- 4 Keyboard Zones for splits and layers
- 3 factory dynamic curves
- 15 memory user locations for velocity dynamic courves saving
- 64 memory locations for Patch saving
- assignable Aftertouch
- Panic buttons
- You Play feature is the best and fastest way to create a dynamic curve in Realtime
- MIDI Out
- USB class compliant - to connect with PC to load/save
- XP, Vista and MAC compatible, no drivers required
- powered via USB (cable not included) and / or power adapter (included)
- Size: 51,2" (L) x 12,0" (W) x 4,8" (H) - 130 x 30,5 x 12,0 cm
- Weight: 22 lbs - 10,0 kg

Review on the Web

- Youtube

- Harmony Central (en)
- Bonedo (de)

Bookmark-Share-Tweet

Buy it at the best price in our partner online shops

Thomann Cyberstore (Europe-UK) Thomann Cyberstore (Europe-UK)

Musician's Friend (USA-Canada-Australia) Musician's Friend (USA-Canada-Australia)

1 review

  • Very good action for pianists
    16 August 2010 at 22:13 , by admin

    USB keyboard with great action, very useful "You play" function to adapt velocity curve to any virtual pianos

    touch sensitive control panel hard to use
