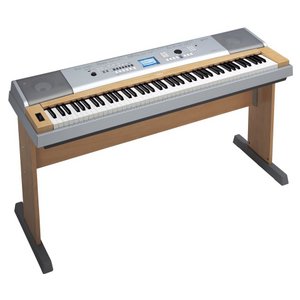

YAMAHA DGX 630

All the versions of this article: [Deutsch] [English] [français]


The Yamaha Portable Grand DGX630 is an affordable 88-key weighted graded hammer action Portable Keyboard that boasts an authentic grand piano like touch — heavy in the low end, feathery light in the high, and amazingly responsive all over.

Graded Hammer Standard (GHS) Keyboard

Just as on a traditional acoustic piano, the keys of the lower notes have a heavier touch, while the higher ones are more responsive to lighter playing. The keyboard’s sensitivity can even be adjusted to match your playing style. This Graded Hammer technology also enables the instrument to provide authentic touch in a lightweight instrument.

Amazingly Realistic Sounds

Yamaha’s highly acclaimed Sweet! and Cool! Voices deliver incredibly natural and dynamic sound. Use the Pitch Bend wheel, and hear these Voices—especially the Sax and Trumpet—truly come alive!

Live!, Cool! and Sweet! Voices

A huge palette of acoustic and electronically amplified instrument sounds. A blend of long, stereo and multi-layered samples is used to fully capture the natural presence, resonance, expression and vibrato of the real instrument.

Digital Signal Processor (DSP)

The DSP effect can be added to the Main and Dual Voices. These range from reverb-like ambience effects to distortion and other dynamic processing tools that le you enhance the sound, or completely transform it.

Easy Song Arranger

In addition to each song’s default style, you can select any other style to play the song with the Easy Song Arranger feature. This means that you can play a song that is normally a ballad, for example, as a bossa nova, as a hip-hop tune, etc. You can create totally different arrangements by changing the style with which a song is played. You can also change the song’s melody voice and the keyboard voice for a complete change of image.

Performance Assistant Technology (P.A.T.)

Play along with a song on the instrument’s keyboard and produce a perfect performance every time … even if you play wrong notes! All you have to do is play on the keyboard—alternately on the left- and right-hand ranges of the keyboard, for example—and you’ll sound like a pro as long as you play in time with the music.

Music Database plus External Files

You want to play music in your favorite style, but you’re not sure how to select the best voice and style for the type of music you want to play … simply select the appropriate style from the Music Database. The panel settings will automatically be adjusted for the ideal combination of sounds and style! Furthermore, this instrument allows Music Database files transferred from a computer or stored on a USB flash memory device. These files can be used in the same way as the internal Music Database.

USB TO DEVICE Terminal

Insert a USB flash memory in the USB TO DEVICE terminal on the instrument. It would let you save or load the registered settings and user songs created on the instrument, as well as read data from the connected device.

USB TO HOST Terminal

Dive in and take advantage of the wide world of computer music software. Connections and setup are exceptionally easy, and you can play back your computer recorded parts with different instrument sounds - all from a single instrument.

Portable Grand Button

Playing piano is fast and easy with Yamaha’s Portable Grand function. One dedicated button brings up a great sounding piano, stunningly rich and authentic in its sound as well as setting up the keyboard to play as a piano.

Easy Performance with Music Notation Display

When you play back a song, the corresponding score will be shown on the display as the song plays. This is a great way to learn how to read music. If the song contains lyric and chord data*, the lyrics and chords will also appear on the score display. * No lyrics or chords will appear on the display if the song does not contain the appropriate lyric and chord data.

Yamaha Education Suite (Y.E.S.)

Yamaha Education Suite (Y.E.S.) is an advanced set of helpful learning tools built into the instrument, letting you teach yourself how to play and perform. Y.E.S. helps you master a song with easy lesson steps. Each lesson can be done in isolation with either your left hand or right hand, or both.

Optional three pedals unit (LP-7)

The pedal unit has three foot pedals that produce a range of expressive effects similar to those produced by the pedals on an acoustic piano.

Features

Size/Weight

  • Width 1,405mm (55-1/3") with keyboard stand
  • Height 773mm (30-3/8") with keyboard stand
  • Depth 485mm (19-1/8") with keyboard stand
  • Weight 25.5kg (56lbs., 3oz.) with keyboard stand

Control Interface

  • Number of Keys 88
  • Type Graded Hammer Standard (GHS) Keyboard
  • Touch Response Yes

Other Controllers

  • Pitch Bend Yes

Display

  • Type Full Dot LCD
  • Size 320 x 240 dots
  • Color Monochrome
  • Contrast Yes
  • Score Display Function Yes
  • Lyrics Display Function Yes
  • Language English

Voices

  • Tone Generating Technology AWM Stereo Sampling
  • Number of Polyphony (Max.) 64
  • Number of Voices 130 + 361 XGlite + 12 Drum/SFX Kits
  • Featured Voices 3 Live! Voices, 8 Sweet! Voices, 5 Cool! Voices

Compatibility

  • GM Yes
  • XGlite Yes
  • XF Yes

Effects

  • Reverb 29 types
  • Chorus 24 types
  • DSP 182 types
  • Master EQ 5 types

Functions

  • Dual/Layers Yes
  • Split Yes
  • Panel Sustain yes (in Menu)
  • Accompaniment Styles
  • Number of Preset Styles 160
  • Fingering Multi / Full Keyboard
  • Style Control INTRO, MAIN x 2, FILL-IN, ENDING

Other Features

  • Easy Song Arranger Yes
  • Music Database 300 + External Files
  • One Touch Setting (OTS) Yes

Songs

  • Number of Preset Songs 30
  • Number of Songs 5
  • Number of Tracks 6 (5 Melody + 1 Chord)
  • Data Capacity Approx. 30,000 notes for 5 user songs (when only "melody" tracks are recorded)
  • Recording Function Yes

Compatible Data Format

  • Playback SMF
  • Recording SMF (Format 0)

Functions

  • Registration
  • Number of Buttons 2 ( x 8 banks )
  • Lesson/Guide
  • Performance Assistant Technology (PAT) Chord, Melody, Chord/Free, Chord/Melody
  • Yamaha Education Suite (YES) Waiting, Your tempo, Minus one, Repeat & Learn, Chord Dictionary
  • Demo/Help
  • Demonstration Yes
  • Overall Controls
  • Metronome Yes
  • Tempo Range 5 - 280
  • Transpose -12 to 0, 0 to +12
  • Tuning Yes

  • Storage and Connectivity
  • Internal Memory 1895KB
  • External Drives Optional USB Flash Memory (via USB To Device)
  • DC IN DC IN 12V
  • Headphones x 1
  • Sustain Pedal x 1
  • Pedal Unit x 1
  • USB TO DEVICE Yes
  • USB TO HOST Yes

Amplifiers and Speakers Amplifiers 6W + 6W Speakers 12cm x 2 + 3cm x 2

Power Supply

  • Power Supply Adaptor (PA-150 or PA-5D)
  • Power Consumption 22W

Included Accessories

  • Music Rest Yes
  • Keyboard Stand Yes
  • Pedal/Footswitch FC5
  • Song Book Included in CD-ROM with PFD format

Yamaha digital pianos comparison
